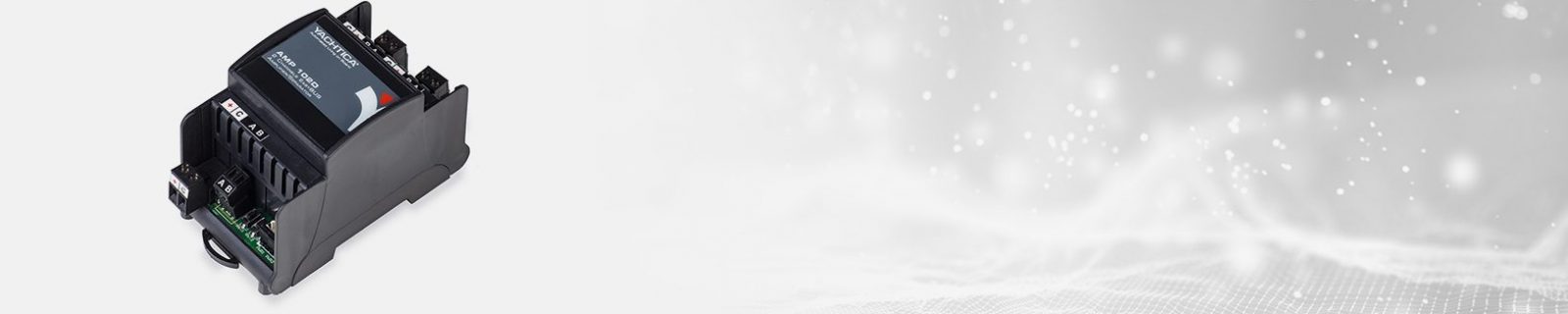

AMP 102D

The AMP 102D is a module with integrated microprocessor that acts as insulator and amplifier EasyBUS signal. The module can be placed inside an electrical switchboard to separate the switchboard EasyBUS loop from two other loops.

2 Channels EasyBUS Amplifier/Separator

  • 3 electrically isolated BUS connectors
  • 3 connectors for power supply
  • Monitoring LEDs
  • DIN rail installation (3M)
  • Detachable terminal blocks
  • Formal coating treatment

The module acts as an EasyBUS signal protector. It allows amplifying the digital signal. It also performs the function of isolation between three EasyBUS loops, allowing the system to work properly in case of electrical failure of a particular loop. The module is rated to be installed inside an electrical switchboard: thanks to selectors and status LEDs you can easily check the status of the system.

Electronic power supply 11-28VDC
Maximum input absorption 0,4W (16mA @24VDC, 32mA @12VDC)
EasyBUS Outputs 2
Dimensions (W x H x D) 53x58x90mm (3 DIN)
