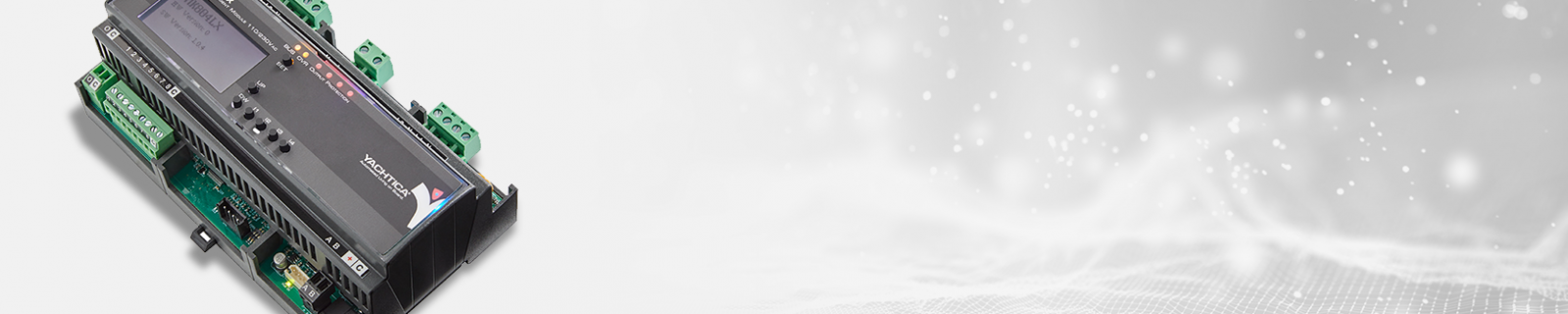

DMK 804LX

The DMK 804LX module is equipped with an integrated programmable microcontroller used to control and dimm 110/230VAC lighting sources, using 4 power outputs: each channel handles up to 2,5A loads (5A in on/off mode). The module is rated to work with 110/230VAC incandescent and halogen lights, or low voltage lamps powered by a standard or electronic transformer.

Lighting Management Module 110/230 VAC

  • 4 programmable dimmer or on/off outputs 110/230VAC┬á(leading edge)
  • 8 programmable dry contact inputs
  • Dimming or on/off functionality
  • EasyBUS communication
  • Stand-alone mode
  • Programmable functionality via Cabot
  • Advanced managing of overload and short circuit
  • Optoisolation between electronic and power
  • Control and monitoring display on the front panel
  • Dipswitches to set standard programming
  • DIN rail installation (9M)
  • Detachable terminal blocks
  • Formal coating treatment

In addition to a standard programming that allows using it in stand-alone mode, connecting push-buttons or sensors to the 8 dry contact inputs, it is possible to customize the programming using the Yachtica® software Cabot. The module can communicate with other EasyBUS products by the system BUS. A useful display on the front panel, with some buttons, allows setting some parameters and the outputs monitoring and control. The recall of the programmed functions can be done by push-buttons, smartphone/tablet or touch screen.

Electronic power supply 20-28VDC
Maximum electronic requirements 2W (85mA @24VDC)
Outputs power supply 110/230VAC
Load ratings 2,5A each
Dimensions (W x H x D) 159x58x90mm (9 M)
