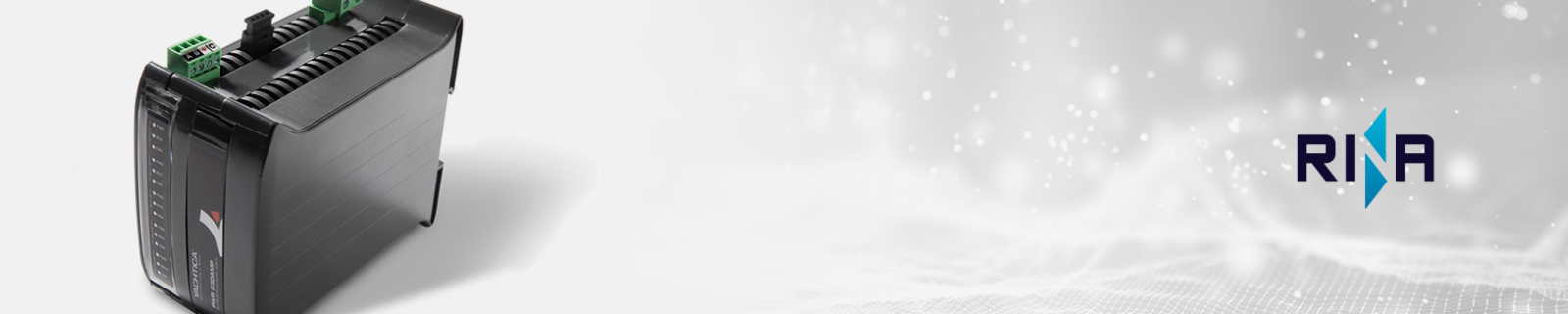

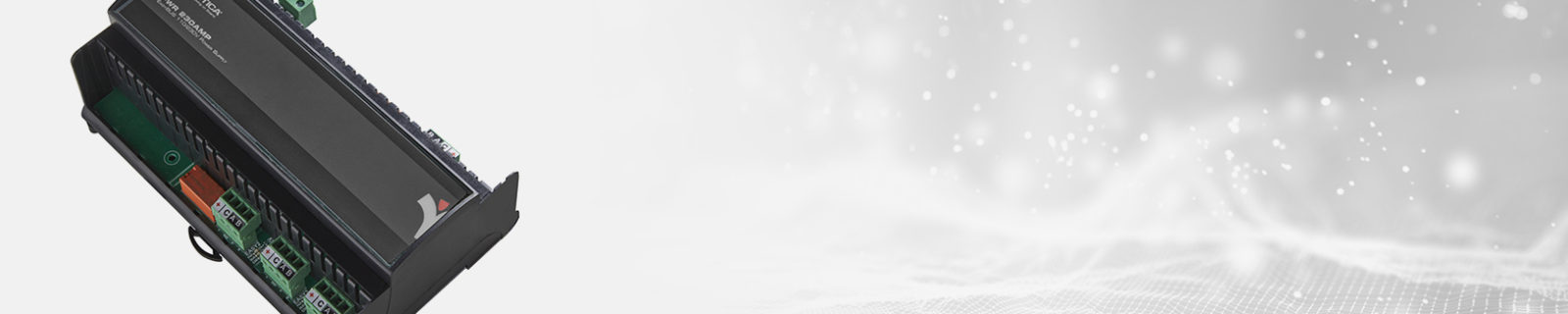

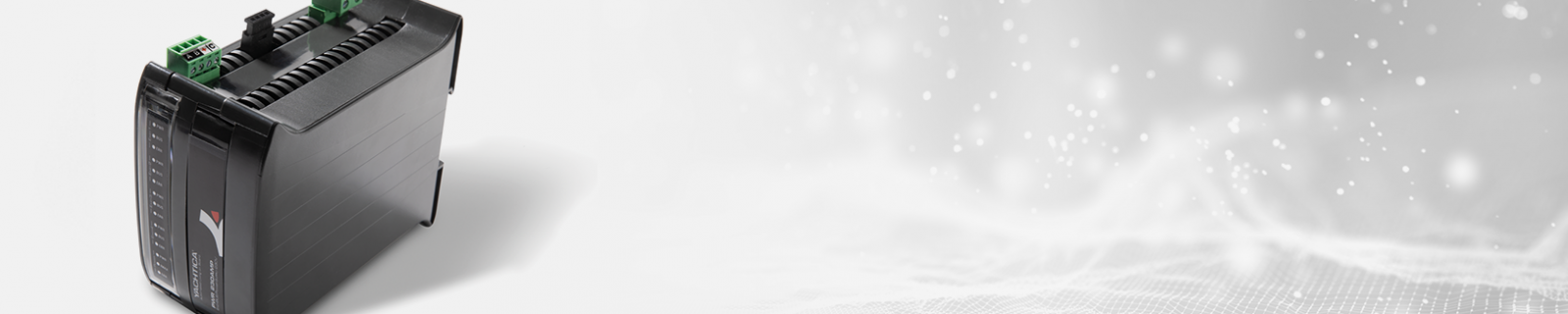

PWR 230 AMP

PWR 230AMP is a 110/230VAC power supply with a programmable integrated microprocessor used to supply the Yachtica modules electronic, provided with 4 sectionable and protected ports.
The module allows to supply correctly the modules of the Yachtica system thanks to its proper electrical features, tailored for this purpose. The 4 EasyBUS ports accomplish the control of the wired ports in order to protect them in case of wrong wiring or damages in the electrical plant itself, isolating the interested port through relay and make a damage warning through the Cabot programming and monitoring software and the signaling LED on board the module.

EasyBUS Power Supply Module 110/230 VAC

  • Power Supply 110/230VAC
  • 4 sectionable EasyBUS Ports
  • Independent protection on the EasyBUS outputs
  • DIN rail mounting
  • Detachable terminal blocks
  • Conformal coating treatment
Primary Power Supply 110/230VAC
Outputs Power Supply Stabilized 24VDC
Max Load Rating 2,5A (60W)
Dimensions (W x H x D)  60x110x120mm

Area download

Datasheet Download
