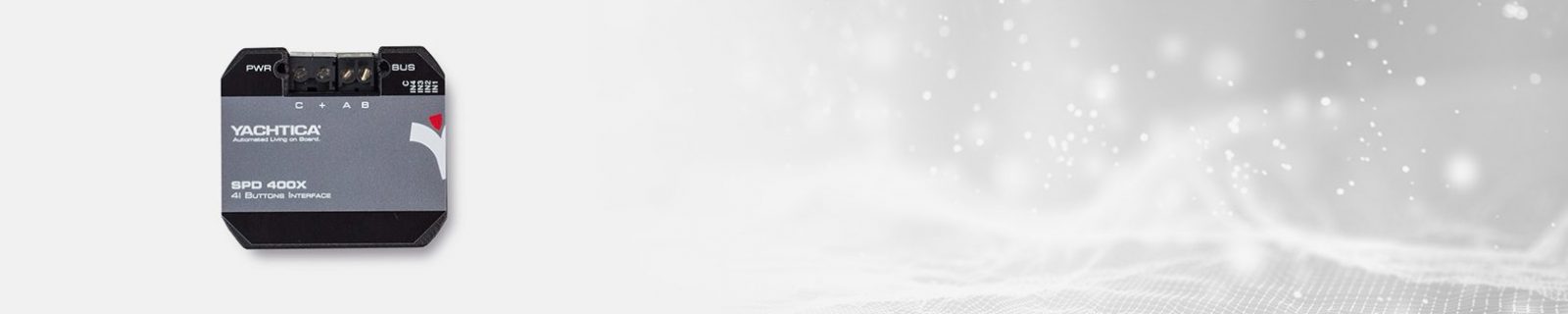

SPD 400X

The SPD 400X module is equipped with an integrated microcontroller used to manage 4 dry contact inputs. The module can be located inside a standard box or behind a bulkhead. The module is suitable for wiring of 4 dry contact inputs from command button lighting, TV lifts, curtains and other devices connected to the EasyBUS system.
4 I Push Buttons Interface
- 4 programmable dry contact inputs
- EasyBUS communication
- Programmable functionality via Cabot
- Detachable terminal blocks
- Conformal coating treatment
In addition to a standard programming that allows using it in stand-alone mode, connecting push-buttons or sensors to the 4 dry contact inputs, it is possible to customize the programming using the Yachtica® software Cabot. The module can communicate with other EasyBUS products by the system BUS. The recall of the programmed functions can be done by push-buttons, smartphone/tablet or touch screen.
Electronic power supply | 11-28VDC |
Maximum electronic requirements | 0,4W (16mA @24VDC, 32mA @12VDC) |
Dimensions (W x H x D) | 50x44x15mm |
