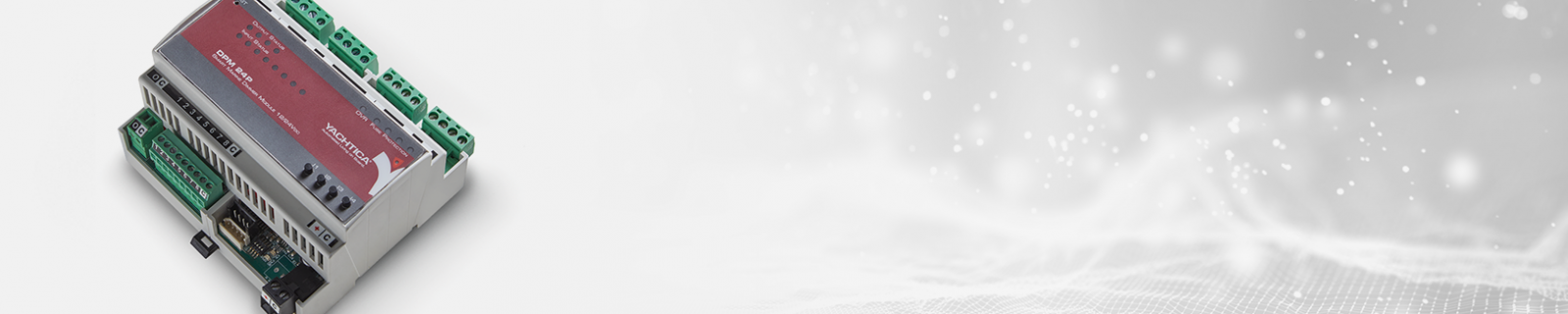

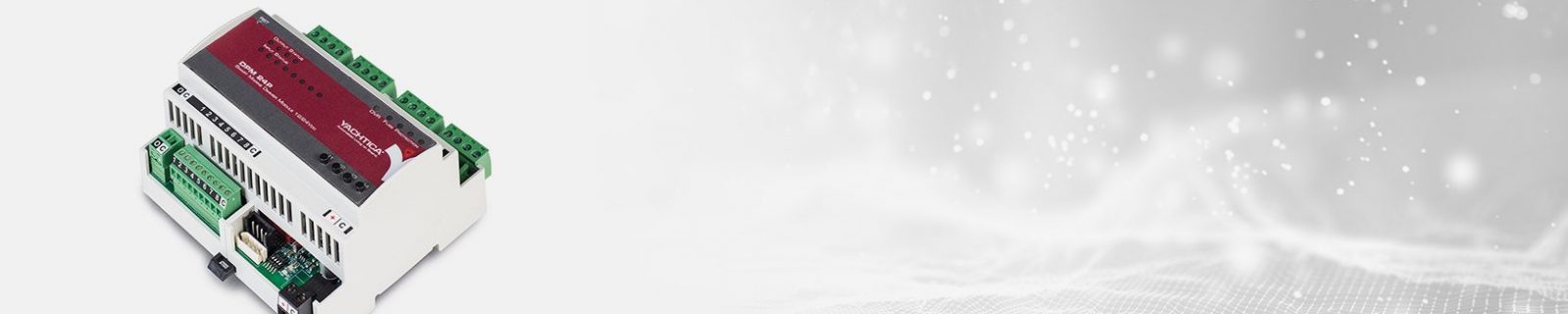

DPM 24P (-F)

The DPM 24P module is equipped with an integrated microcontroller used to control and dimm 4 different 12/24VDC lighting sources. The module is rated to work with voltage driven monochromatic LEDs (with or without driver added) or with a PWM signal (if 3-wires driver provided). It can also be used to control 12/24VDC incandescent and halogen lamps. Each channel handles up to 16A loads.

Smart Marine Dimmer Module 12/24 VDC

  • 4 dimmer outputs with memory 12/24VDC (PWM 400Hz)
  • Programmable scenarios via buttons
  • 8 dry contact inputs
  • Electronic protection against overload and short circuit
  • Monitoring LEDs and control buttons on the front panel
  • DIN rail installation (6M)
  • Detachable terminal blocks
  • Conformal coating treatment

The module has 8 inputs that can be connected to any kind of dry contact, pushbuttons and sensors. The inputs can be used to control each line individually and to activate the pre-programmed scenarios: all on, all off, all 60%, all 20%. The scenarios can be changed and saved using the recall buttons. The setting of on board dispwtiches allows to link up to 4 outputs, to reach a maximum load of 64A.

Feedback (DPM 24P-F)

The DPM 24P-F module has 4 optoisolated outputs, which are used to keep track of the logical state (on/off ) of the dimmable power outputs. The optoisolated outputs can be wired to both positive and negative switching digital input modules to suit any installation requirements.

Electronic power supply 11-28VDC
Maximum electronic requirements 0,6W (25mA @24VDC, 50mA @12VDC)
Power supply for dimmer outputs 11/24VDC
Output power supply 16A each, PWM 400Hz
Feedback outputs (DPM 24P-F) Max. voltage 48VDC/24VAC, 12mA
Dimensions (W x H x D) 106x58x90mm (6 M)
