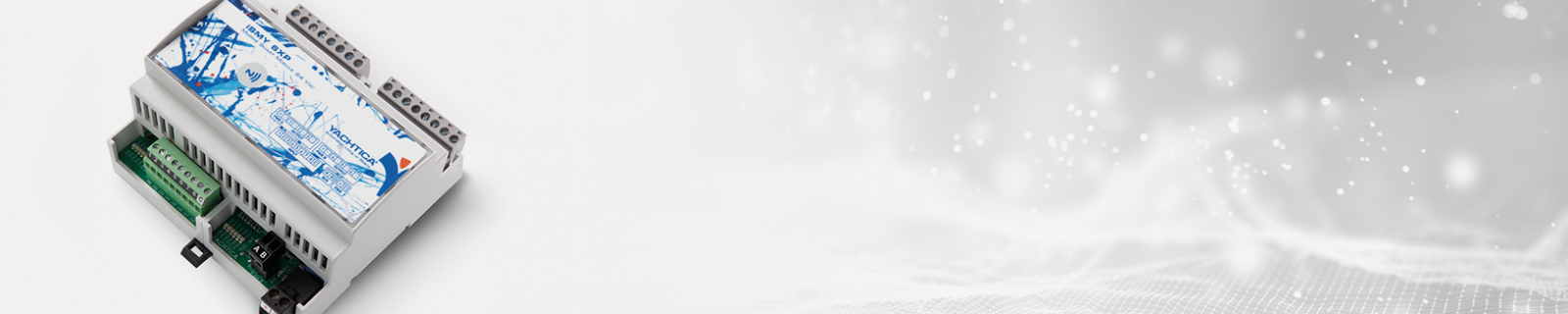

iSMY 6XP module is equipped with an integrated programmable microcontroller used to control and dimm 6 different 24VDC lighting sources. Its main feature is that each output can be set, by the use of the Android App Yachtica iSMY TECH (by a NFC antenna) as on/off, dimmer (on positive) or curtains (up/down with a couple of relays). The module is rated to work with voltage driven monochromatic LEDs (with or without driver added) or with a PWM signal (if 3-wires driver provided). Each channel handles up to 5A loads.

Marine Smart Module

  • 6 outputs: on/off, dimmer (on positive), curtains
  • 8 programmable dry contact inputs
  • NFC Antenna to set the outputs by the App iSMY TECH
  • EasyBUS communication
  • Stand-alone mode
  • Programmable functionality via Cabot
  • Advanced managing of overload and short circuit
  • Optoisolation between electronic and power
  • DIN rail installation (6M)
  • Detachable terminal blocks
  • Conformal coating treatment

In addition to a standard programming that allows using it in stand-alone mode, connecting push-buttons or sensors to the first 6 dry contact inputs managing the outputs in on/off mode, it is possible to customize the functionalities using the Yachtica® app iSMY TECH. The module can communicate with maximum 10 iSMY 6XP modules, and with Yachtica EasyBUS plates collection, HPLATE and KPLATE. With the user app it is possible to manage the lighting circuits (iSMY ETH module and a wi-fi network needed).

Electronic Power Supply 18/32VDC
Maximum Electronic Requirements 0,6W (25mA@24VDC, 18/32VDC)
Output Power Supply 18/32VDC
Load Ratings  5A each, PWM 200Hz
Dimensions (W x H x D)  106x58x90mm (6 M)
