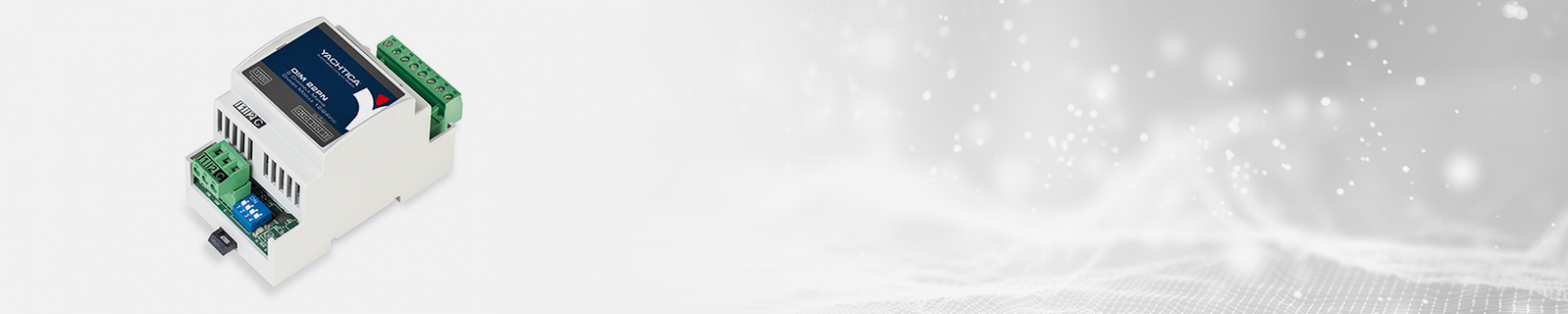

The DIM 22PN module is equipped with an integrated microcontroller used to control and dimm 2 different 12/24VDC lighting sources. The module is rated to work with voltage driven monochromatic LEDs (with or without driver added) or with a PWM signal (if 3-wires driver provided). It can also be used to control 12/24VDC incandescent and halogen lamps. Each channel handles up to 6A loads.

2 Channels Marine Dimmer Module 12/24 VDC

  • 2 dimmer outputs with memory 12/24VDC (PWM 200Hz)
  • 2 dry contact inputs
  • Electronic protection against overload and short circuit
  • Monitoring LEDs on the front panel
  • DIN rail installation (3M)
  • Detachable terminal blocks
  • Conformal coating treatment

The module has 2 inputs that can be connected to any kind of dry contact, pushbuttons and sensors. The inputs can be used to control each line individually. A dipswitch to link the 2 outputs let it to be used with a maximum load of 12A. It allows to control 3-wires LEDs using dipswtiches.

Electronic power supply 11-28VDC
Maximum electronic requirements 1,2W (50mA @24VDC, 100mA @12VDC)
Power supply for dimmer outputs 12/24VDC
Output power supply 6A each, PWM 200Hz
Dimensions (W x H x D) 53x58x90mm (3 M)
