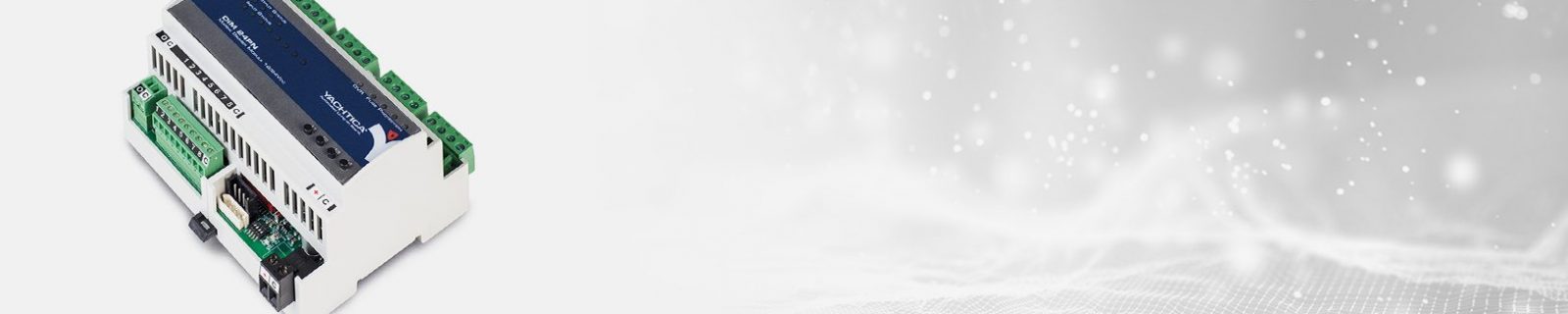

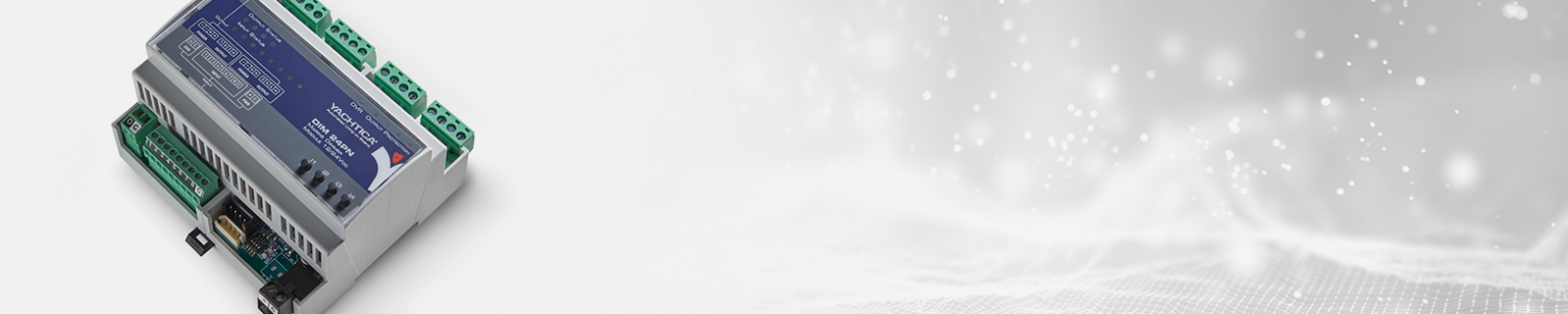

DIM 24PN (-F)
The DIM 24PN module is equipped with an integrated microcontroller used to control and dimm 4 different 12/24VDC lighting sources. The module is rated to work with voltage driven monochromatic LEDs (with or without driver added) or with a PWM signal (if 3-wires driver provided). It can also be used to control 12/24VDC incandescent and halogen lamps. Each channel handles up to 16A loads.
Marine Dimmer Module 12/24 VDC
- 4 dimmer outputs with memory 12/24VDC (PWM 200Hz)
- Pre-set scenarios
- 8 dry contact inputs
- Electronic protection against overload and short circuit
- Monitoring LEDs and control buttons on the front panel
- DIN rail installation (6M)
- Detachable terminal blocks
- Conformal coating treatment
The module has 8 inputs that can be connected to any kind of dry contact, pushbuttons and sensors. The inputs can be used to control each line individually and to activate the preprogrammed scenarios: all on, all off, all 60%, all 20%. The setting of on board dipswtiches allows to link up to 4 outputs, to reach a maximum load of 64A.
Feedback (DIM 24PN-F)
The DIM 24PN-F module has 4 optoisolated outputs, which are used to keep track of the logical state (on/off) of the dimmable power outputs. The optoisolated outputs can be wired to both positive and negative switching digital input modules to suit any installation requirements.
|Electronic power supply||11-28VDC|
|Maximum electronic requirements||0,6W (25mA @24VDC, 50mA @12VDC)|
|Power supply for dimmer outputs||11/24VDC|
|Output power supply||16A each, PWM 200Hz|
|Feedback outputs (DIM 24PN-F)||Max. voltage 48VDC/24VAC, 12mA|
|Dimensions (W x H x D)||106x58x90mm (6 M)|
