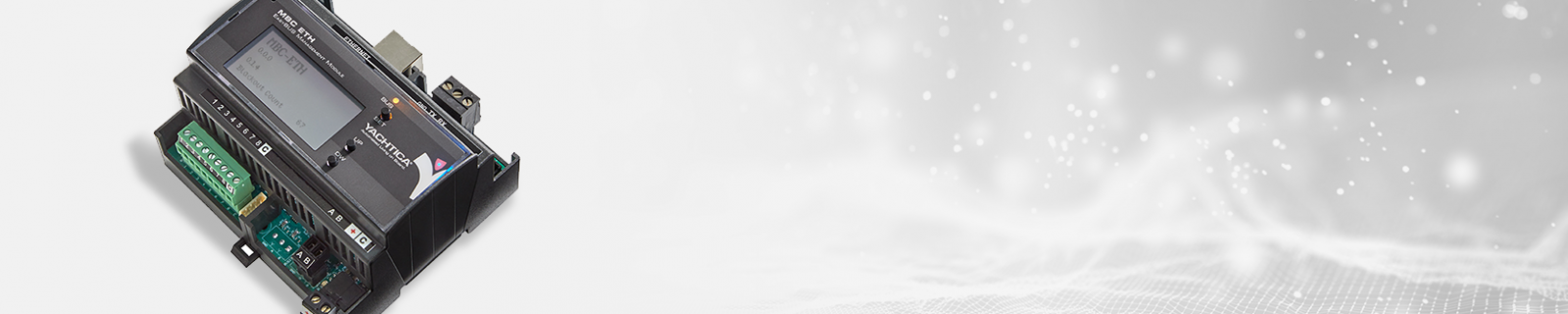

MBC ETH

The MBC ETH is a module used to connect the Yachtica® system BUS EasyBUS to other devices/computer through an Ethernet or a RS-232 port. The module can be used to program Yachtica®’s modules connected to the BUS, with custom functionalities through the Yachtica® software Cabot. The module is also used as communication interface between monitoring and/or entertainment systems and Yachtica®. By the use of the Yachtica® APP it is possible to manage the system with a simple graphic interface.

EasyBUS Management Module

Ethernet and RS-232 interface
8 dry contact inputs
FTP and WEB server on board
Global scenarios programming
Optoisolated RS-232 and ethernet ports
EasyBUS communication
Control and monitoring display
System management using Yachtica® APP
DIN rail installation (6M)
Detachable terminal blocks
Conformal coating treatment

Electronic power supply	11-28V_DC
Maximum electronic requirements	0,8W (32mA @24V_DC, 64mA @12V_DC)
Communication	RS-232/Ethernet
Dimensions (W x H x D)	106x58x90mm (6 M)
