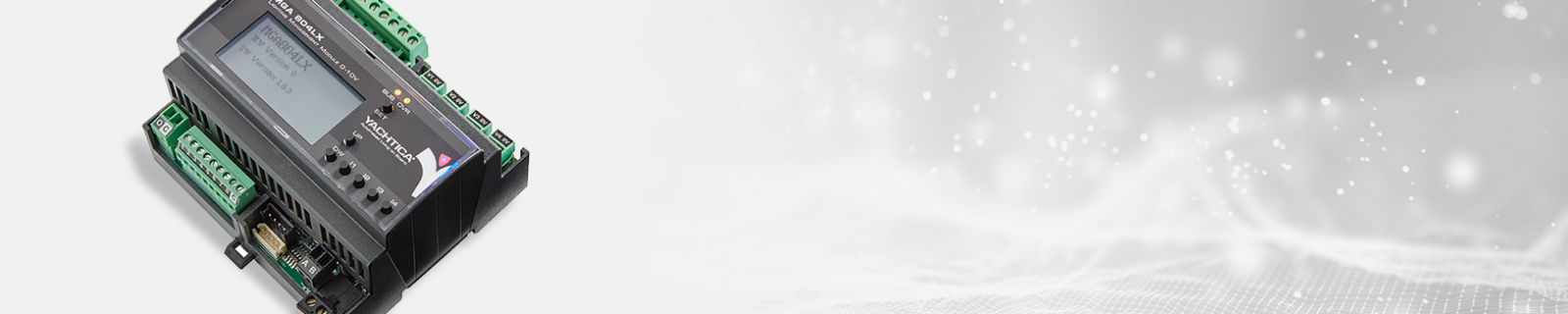

MGA 804LX

The MGA 804LX module is equipped with an integrated programmable microcontroller used to control and dimm lighting sources or devices, using 4 0-1/10V outputs. The module is rated to work with devices driven by a 0-1/10V signal, such as light circuits or motors and other system using this control management.

Lighting Management Module 0-10V

  • 4 programmable 0-1/10V outputs with power exclusion relays
  • 8 programmable dry contact inputs
  • EasyBUS communication
  • Stand-alone mode
  • Programmable functionality via Cabot
  • Advanced managing of short circuit
  • Optoisolation between electronic and power
  • Control and monitoring display on the front panel
  • Dipswitches to set standard programming
  • DIN rail installation (6M)
  • Detachable terminal blocks
  • Formal coating treatment

In addition to a standard programming that allows using it in stand-alone mode, connecting push-buttons or sensors to the 8 dry contact inputs, it is possible to customize the programming using the Yachtica® software Cabot. The module can communicate with other EasyBUS products by the system BUS. A useful display on the front panel, with some buttons, allows setting some parameters and the outputs monitoring and control. The recall of the programmed functions can be done by push-buttons, smartphone/tablet or touch screen.

Electronic power supply 20-28VDC
Maximum electronic requirements 2,4W (100mA @24VDC)
Outputs power supply Relay max 110/230VAC
Load ratings Relay max 16A – Analog outputs 0-10V 10mA max
Dimensions (W x H x D) 106x58x90mm (6 M)
