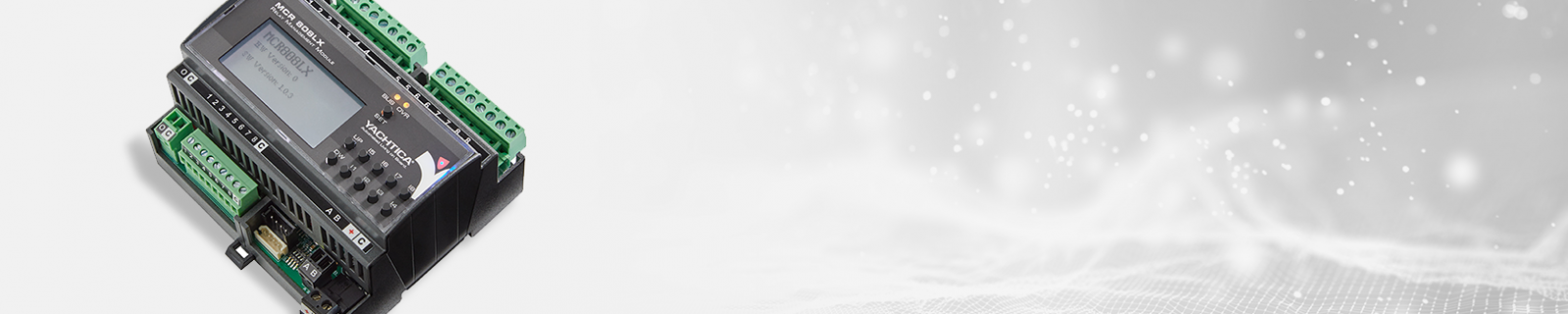

MCR 808LX

The MCR 808LX module is equipped with an integrated programmable microcontroller used to control in on/off mode different lighting sources, using 8 relay outputs. The module allows the control and the management of lighting circuits at 12/24VAC/DC, 110/230VAC with a maximum absorption of 16A for each output. It can also be used to activate dry contact devices as dry contact boards for curtains automation management or TV lift. The recall of the programmed functions can be done by push-buttons, smartphone/tablet or touch screen.

Relay Management Module

  • 8 programmable unipolar relay outputs (16A max)
  • 8 programmable dry contact inputs
  • EasyBUS communication
  • Programmable functionality via Cabot
  • Stand-alone mode
  • Control and monitoring display on the front panel
  • Dipswitches to set standard programming
  • DIN rail installation (6M)
  • Detachable terminal blocks
  • Formal coating treatment

In addition to a standard programming that allows using it in stand-alone mode, connecting push-buttons or sensors to the 8 dry contact inputs, it is possible to customize the programming using the Yachtica® software Cabot. The module can communicate with other EasyBUS products by the system BUS. A useful display on the front panel, with some buttons, allows setting some parameters and the outputs monitoring and control. The recall of the programmed functions can be done by push-buttons, smartphone/tablet or touch screen.

Electronic power supply 20-28VDC
Maximum electronic requirements 3,6W (150mA @24VDC)
Outputs power supply Max 280 VAC
Load ratings 16A each (see installation manual)
Dimensions (W x H x D) 106x58x90mm (6 M)
