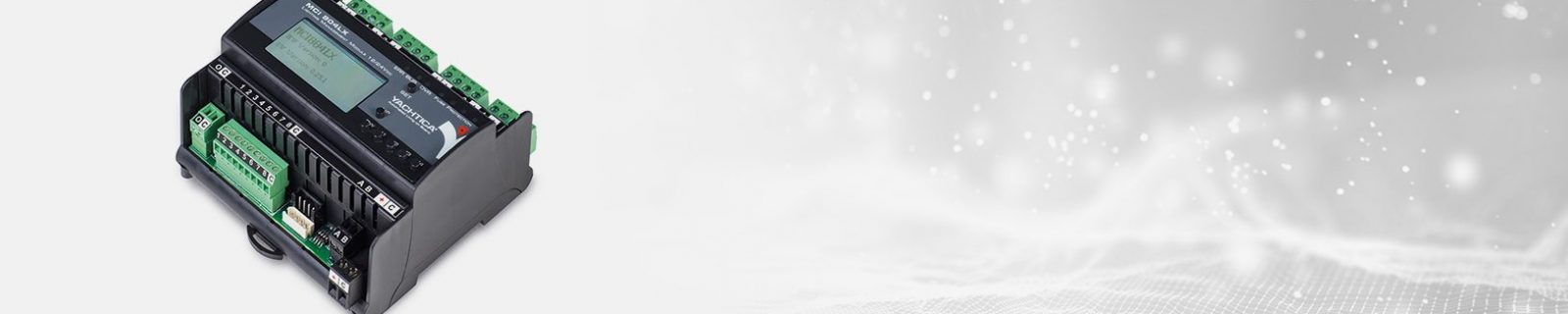

MCI 804LX

The MCI 804LX module is equipped with an integrated programmable microcontroller used to control and dimm 4 different 12/24VDC lighting sources. The module is rated to work with voltage driven monochromatic LEDs (with or without driver added) or with a PWM signal (if 3-wires driver provided). It can also be used to control 12/24VDC incandescent and halogen lamps. Each channel handles up to 16A loads.

Lighting Management Module 12/24 VDC

  • 4 programmable dimmer outputs 12/24VDC (PWM 400Hz adjustable)
  • 8 programmable dry contact inputs
  • EasyBUS communication
  • Stand-alone mode
  • Programmable functionality via Cabot
  • Advanced managing of overload and short circuit
  • Optoisolation between electronic and power
  • Control and monitoring display on the front panel
  • Dipswitches to set standard programming
  • DIN rail installation (6M)
  • Detachable terminal blocks
  • Conformal coating treatment

In addition to a standard programming that allows using it in stand-alone mode, connecting push-buttons or sensors to the 8 dry contact inputs, it is possible to customize the programming using the Yachtica® software Cabot. The module can communicate with other EasyBUS products by the system BUS. A useful display on the front panel, with buttons, allows setting some parameters and the outputs monitoring and control. The recall of the programmed functions can be done by push-buttons, smartphone/tablet or touch screen.

Electronic power supply 11-28VDC
Maximum electronic requirements 0,6W (25mA @24VDC, 50mA @12VDC)
Outputs power supply 11/32VDC
Load ratings 16A each, PWM 400Hz
Dimensions (W x H x D) 106x58x90mm (6 M)
