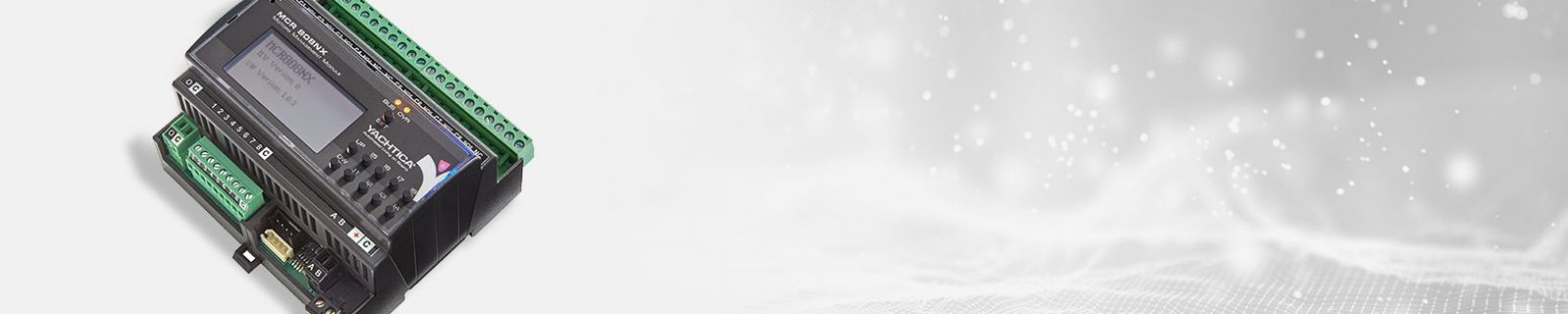

MCR 808NX

The MCR 808NX module is equipped with an integrated microcontroller used to control motors, using 4 couple (up/down) of relay outputs with programmable software protection. The module is rated to work with electrical motors at 12/24VDC/AC and 110/230VAC (with a max absorption of 16A) or dry contact devices as motors dry contact control unit or TV lift..

Motors Management Module

  • 4 programmable couple of outputs relay (16A max)
  • 8 programmable dry contact inputs
  • Outputs hardware and software interlock
  • Advanced software encoder
  • EasyBUS communication
  • Programmable functionality via Cabot
  • Stand-alone mode
  • Control and monitoring display on the front panel
  • Dipswitches to set standard programming
  • DIN rail installation (6M)
  • Detachable terminal blocks
  • Formal coating treatment

In addition to a standard programming that allows using it in stand-alone mode, connecting push-buttons or sensors to the 8 dry contact inputs, it is possible to customize the programming using the Yachtica® software Cabot. The module can communicate with other EasyBUS products by the system BUS. A useful display on the front panel, with some buttons, allows setting some parameters and the outputs monitoring and control. The recall of the programmed functions can be done by push-buttons, smartphone/tablet or touch screen.

Electronic power supply 20-28VDC
Maximum electronic requirements 3,6W (150mA @24VDC)
Outputs power supply Max 280 VAC
Load ratings 16A each (see installation manual)
Dimensions (W x H x D) 106x58x90mm (6 M)
